Shielding Boxes

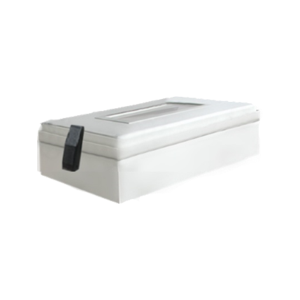

Model HJP - CD01
Features:
◆ Wireless Communication Test, EMI Test, Coupling Test, RF Function Test
◆ High quality, cost effective and fast delivery
◆ With perspective glass
Specification:
Operation Mode: Manual
Material: Aluminum
Size:160 x 220 x 75(mm)
Number of Ports: USB3.0 x 1, SMA – SMA x 2
Options: Visual window x 1,
Temperature Range: -10°C to +50°C
up to 6 GHz >80 dB

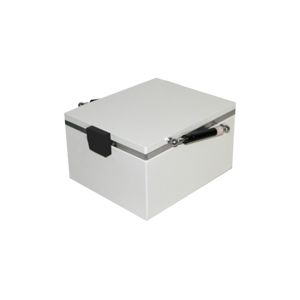

Model HJP - CD03
Features:
◆ Wireless Communication Test, EMI Test, Coupling Test, RF Function Test
◆ High quality, cost effective and fast delivery
Specification:
Operation Mode: Manual
Material: Aluminum
Size: 190 x 200 x 140(mm)
Number of Ports: USB3.0 x 2, 4 N – SMA x 4
Temperature Range: -10°C to +50°C
up to 6 GHz >80 dB

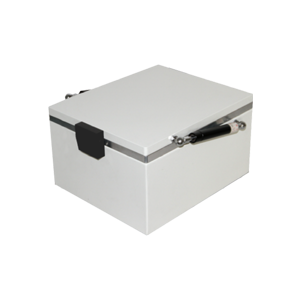

Model HJP - CD05
Features:
◆ Wireless Communication Test, EMI Test, Coupling Test, RF Function Test
◆ High quality, cost effective and fast delivery
Specification:
Operation Mode: Manual
Material: Aluminum
Size:250 x 300 x 170(mm)
Number of Ports: USB3.0 x 2, N – SMA x 4
Temperature Range: -10°C to +50°C
up to 6 GHz >80 dB

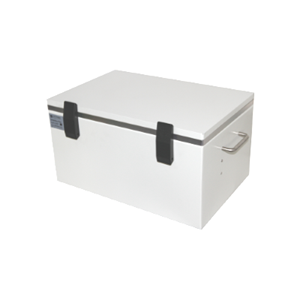

Model HJP - CD07
Features:
◆ Wireless Communication Test, EMI Test, Coupling Test, RF Function Test
◆ High quality, cost effective and fast delivery
Specification:
Operation Mode: Manual
Material: Aluminum
Size:460 x 305 x 245(mm)
Number of Ports: USB3.0 x 4, SMA – SMA x 4,N – N x 2
Options: AC power strip x 1
Temperature Range: -10°C to +50°C
up to 6 GHz >80 dB

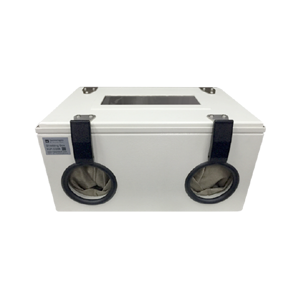

Model HJP - CD08
Features:
◆ Wireless Communication Test, EMI Test, Coupling Test, RF Function Test
◆ High quality, cost effective and fast delivery
Specification:
Operation Mode: Manual
Material: Aluminum
Size: 457 x 305 x 240(mm)
Number of Ports: USB3.0 x 4, SMA – SMA x 4,N – N x 2
Options: AC power strip x 1, Visual window x 1, Glove x 2
Temperature Range: -10°C to +50°C
up to 6 GHz >80 dB

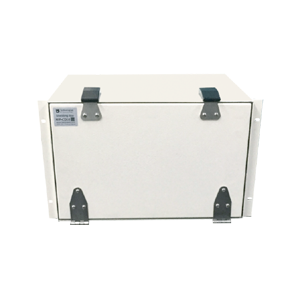

Model HJP - CD10
Features:
◆ Wireless Communication Test, EMI Test, Coupling Test, RF Function Test
◆ High quality, cost effective and fast delivery
Specification:
Operation Mode: Manual
Material: Aluminum
Size: 457 x 305 x 240(mm)
Number of Ports: USB3.0 x 4, SMA – SMA x 4,N – N x 2
Options: AC power strip x 1, Visual window x 1, Glove x 2
Temperature Range: -10°C to +50°C
up to 6 GHz >80 dB

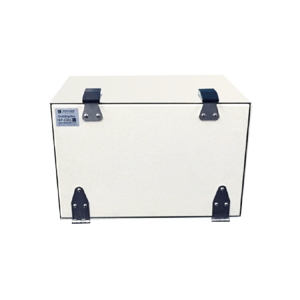

Model HJP - CD11
Features:
◆ Wireless Communication Test, EMI Test, Coupling Test, RF Function Test
◆ High quality, cost effective and fast delivery
Specification:
Operation Mode: Manual
Material: Aluminum
Size: 435 x 300 x 345(mm)
Number of Ports: USB 3.0 x 6, N – SMA x 12
Temperature Range: – 10°C to +50°C
up to 6 GHz >80 dB

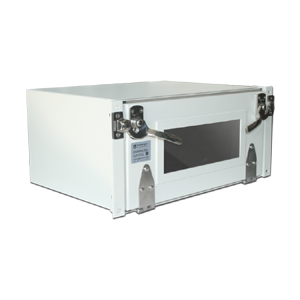

Model HJP - CD12
Features:
◆ Wireless Communication Test, EMI Test, Coupling Test, RF Function Test
◆ High quality, cost effective and fast delivery
Specification:
Operation Mode: Manual
Material: Aluminum
Size: 436 x 220 x 350(mm)
Number of Ports: USB3.0 x 2, N – SMA x 4
Options: AC power strip x 1, Visual window x 1,
Temperature Range: -10°C to +50°C
up to 6 GHz >80 dB
Model HJP - CD12B
Features:
◆ Wireless Communication Test, EMI Test, Coupling Test, RF Function Test
◆ High quality, cost effective and fast delivery
Specification:
Operation Mode: Manual
Material: Aluminum
Size:436 x 220 x 350(mm)
Number of Ports: USB3.0 x 4, N – SMA x 4,
Options: AC power strip x 1, Visual window x 1,
diamond white ambient lighting
Temperature Range: -10°C to +50°C
up to 6 GHz >80 dB

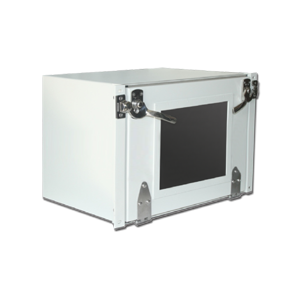

Model HJP - CD30
Features:
◆ Wireless Communication Test, EMI Test, Coupling Test, RF Function Test
◆ High quality, cost effective and fast delivery
Specification:
Operation Mode: Manual
Material: Aluminum
Size:436 x 280 x 350(mm)
Number of Ports: USB3.0 x 4, N – SMA x 4,
USB charging port x 30
Options: AC power strip x 1, Visual window x 1,
Fan x 2, Diamond white ambient lighting, Cellphone holder x 30
Temperature Range: -10°C to +50°C
up to 6 GHz >80 dB

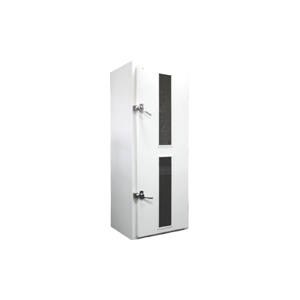

Model HJP - CD22
Features:
◆ Wireless Communication Test, EMI Test, Coupling Test, RF Function Test
◆ High quality, cost effective and fast delivery
Specification:
Operation Mode: Manual
Material: Aluminum
Size:800 x 600 x 2000(mm)
Number of Ports: 64 USB, 16 N – SMA
Options: AC power strip x 8, Visual window x 1,
Diamond white ambient lighting
Temperature Range: -10°C to +50°C
up to 6 GHz >80 dB
