RF Cables

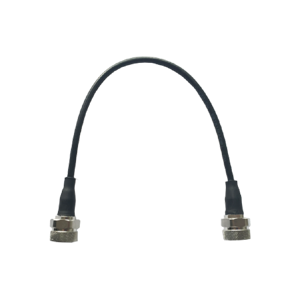

RG 223 Series
Features:
◆ Rugged construction
◆ Any RF connector combination
◆ High quality, cost effective and fast delivery
Specification:
Nominal Impedance: 50Ω
Frequency Range: DC to 6 GHZ
Velocity of Propagation: 66%
Power Handing: 900 W

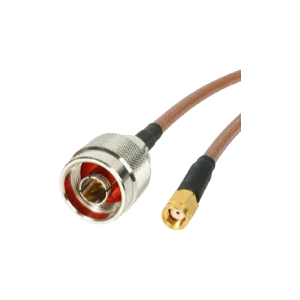

RG 142 Series
Features:
◆ Any RF connector combination
◆ High quality, cost effective and fast delivery
Specification:
Nominal Impedance:50Ω
Frequency Range: DC to 12.4 GHZ
Velocity of propagation:69.5%
Maximum Voltage: 1900 V

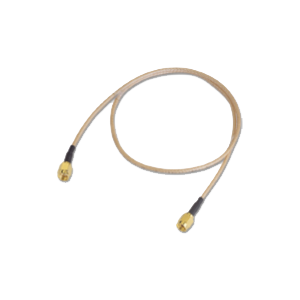

RG 316 Series
Features:
◆ Customized design available
◆ Any RF connector combination
◆ High quality, cost effective and fast delivery
Specification:
Nominal Impedance:50Ω
Frequency Range: DC to 3 GHZ
Velocity of propagation: 69.5%
Maximum Voltage:1200 V

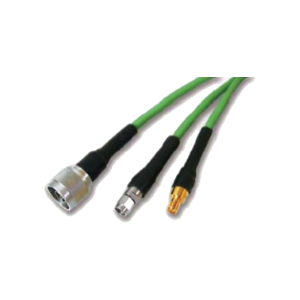

Super - Flexible Series
Features:
◆ Rugged construction
◆ Any RF connector combination
◆ High quality, cost effective and fast delivery
Specification:
Nominal Impedance: 50Ω
Frequency Range: DC to 26.5 GHZ
Shielding Effectiveness: >90 dB
VSWR: 1.27@18 GHz
Power Handing: 180 W

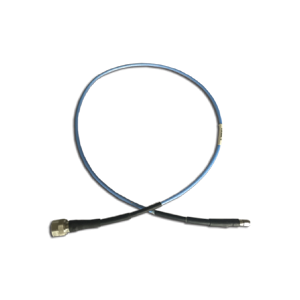

Super Reliable Series
Features:
◆ Rugged construction
◆ Any RF connector combination
◆ High quality, cost effective and fast delivery
Specification:
Nominal Impedance: 50Ω
Frequency Range: DC to 26.5 GHZ
Shielding Effectiveness: >100 dB
VSWR: 1.27@18 GHz
Power Handing: 129 W

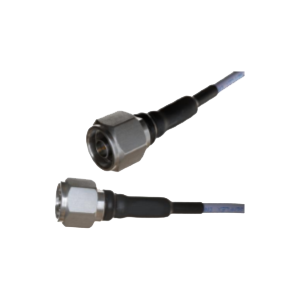

Superior Series
Features:
◆ Precision stainless steel connectors
◆ Low loss PTFE tape Dielectric
◆ Triple shielded for ≥ 90 dB leakage at 18 GHz
Specification:
Nominal Impedance: 50Ω
Frequency Range: DC to 18 GHZ
Velocity of Propagation:76.5%
VSWR: 1.15@18 GHz
Breakdown Voltage:10 KV

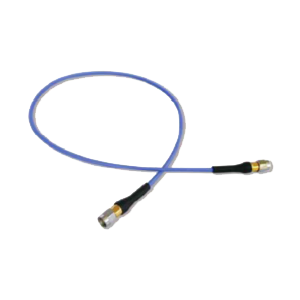

S Series
Features:
◆ Precision stainless steel connectors
◆ Low loss PTFE tape Dielectric
◆ Triple shielded for ≥ 90 dB leakage at 18 GHz
Specification:
Nominal Impedance: 50Ω
Frequency Range: DC to 40 GHZ
Shielding Effectiveness: >100 dB
VSWR: 1.27@18 GHz
Power Handing:55 W

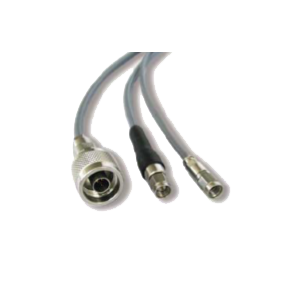

Low - Loss Series
Features:
◆ Precision stainless steel connectors
◆ Low loss PTFE tape Dielectric
◆ Triple shielded for ≥ 90 dB leakage at 18 GHz
Specification:
Nominal Impedance: 50Ω
Frequency Range: DC to 40 GHZ
Shielding Effectiveness: >100 dB
VSWR: 1.27@18 GHz
Power Handing: 172 W@10 GHz
