Fixed Attenuators
Model HJA2 BNC, N, SMA or TNC Connectors
Specification:
Nominal Impedance:50Ω
Power Rating: 2 watts average
Temperature Range: -55°C to +125°C
Connectors: BNC, N, SMA or TNC
Construction: Stainless steel / aluminum alloy body
Model HJA30 BNC, N, SMA or TNC Connectors
Specification:
Nominal Impedance:50Ω
Power Rating: 30 watts average
Temperature Range: -55°C to +125°C
Connectors: BNC, N, SMA, TNC or 7/16
Construction: Stainless steel / aluminum alloy body

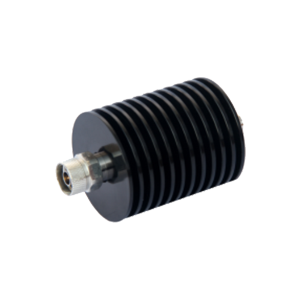

Model HJA50 BNC, N, SMA or TNC Connectors
Specification:
Nominal Impedance:50Ω
Power Rating: 50 watts average
Temperature Range: -55°C to +125°C
Connectors: BNC, N, SMA, TNC or 7/16
Construction: Stainless steel / aluminum alloy body

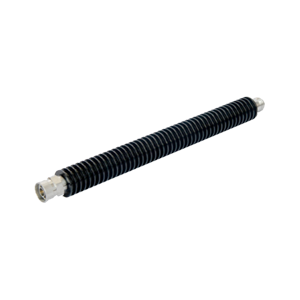

Model HJA60 BNC, N, SMA or TNC Connectors
Specification:
Nominal Impedance:50Ω
Power Rating: 60 watts average
Temperature Range: -55°C to +125°C
Connectors: BNC, N, SMA, TNC or 7/16
Construction: Stainless steel / aluminum alloy body

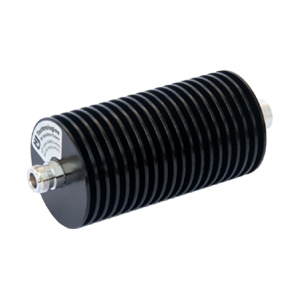

Model HJA100 BNC, N, SMA or TNC Connectors
Specification:
Nominal Impedance:50Ω
Power Rating: 100 watts average
Temperature Range: -55°C to +125°C
Connectors: BNC, N, SMA, TNC or 7/16
Construction: Stainless steel / aluminum alloy body

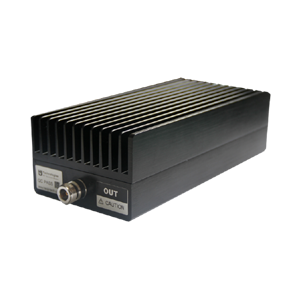

Model HJA150 BNC, N, SMA or TNC Connectors
Specification:
Nominal Impedance:50Ω
Power Rating: 150 watts average
Temperature Range: -55°C to +125°C
Connectors: BNC, N, SMA, TNC or 7/16
Construction: Stainless steel / aluminum alloy body

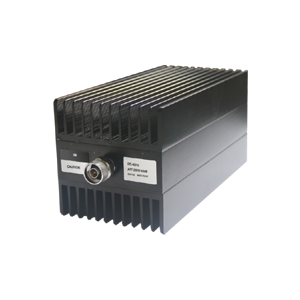

Model HJA200 BNC, N, SMA or TNC Connectors
Specification:
Nominal Impedance:50Ω
Power Rating: 200 watts average
Temperature Range: -55°C to +125°C
Connectors: BNC, N, SMA, TNC or 7/16
Construction: Stainless steel / aluminum alloy body
